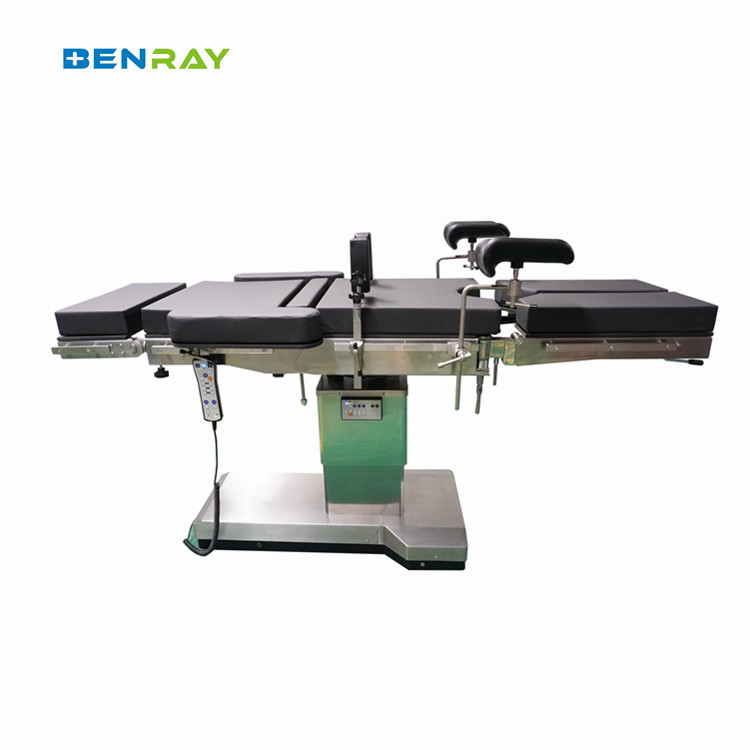

High End Multi Function Electric Hospital Operating Surgical Table
Model : BR-OT04
Feature
●This table is suitable for general, gynecology, obstetric,proctology, urology and orthopaedic operation.
●Radiolucent table top and longitudinal moving 300mm function are very convenient for X-ray examination and C-arm photograph on different parts of body.
●It adopts electro hydraulic system, smooth and silent operation.
●The height ,back section, trendelenburg,lateral and moving 300mm adjustments are all controlled by electro hydraulic.
●The head is manual adjustment and leg section air spring adjustment.
●Made of full premium 304 stainless steel. Mobile stainless steel T shape base on castors with central brake.
●It also has one key 0 position, one key flex and reflex, emergency stop switch, power indicator, storage battery indicator function.
●Double controller system, one is hand remote controller, the other is on column.
Teachnical Parameters
| Product | Multi Function Electric Operating Table |
| Model | BR-OT04 |
| Demensions | 2100*550mm |
| Functions: |
| Height Adjustment(electro hydraulic) | 700-1050mm |
| Trendelenburg(electro hydraulic) | ±30° |
| Lateral Tilt(electro hydraulic) | ±20° |
| Back Section (electro hydraulic) | +85°/-40° |
| Head Board (manual) | +45°/-90° |
| Leg Board (manual) | +30°/-90° |
| Table Top Longitudinal Moving(electro hydraulic) | 300mm |
| Build-in Kidney Elevator(manual) | 0-120mm |
| Flex/Reflex | 220°/110° , 0 position |
Standard Configuration
| Shoulder supports | 2 Pcs |
| Waist supports | 2 Pcs |
| Arm supports | 2 Pcs |
| Leg supports | 2 Pcs |
| Anesthetic screen frame | 1 Piece |
| Mattress | 1 Piece |
| Hand controller | 1 Piece |
| Controller on the column: | 1 Piece |
| Power line | 1 Piece |
| Storage battery | 1 Piece |
| Cassette holder | 1 Piece |

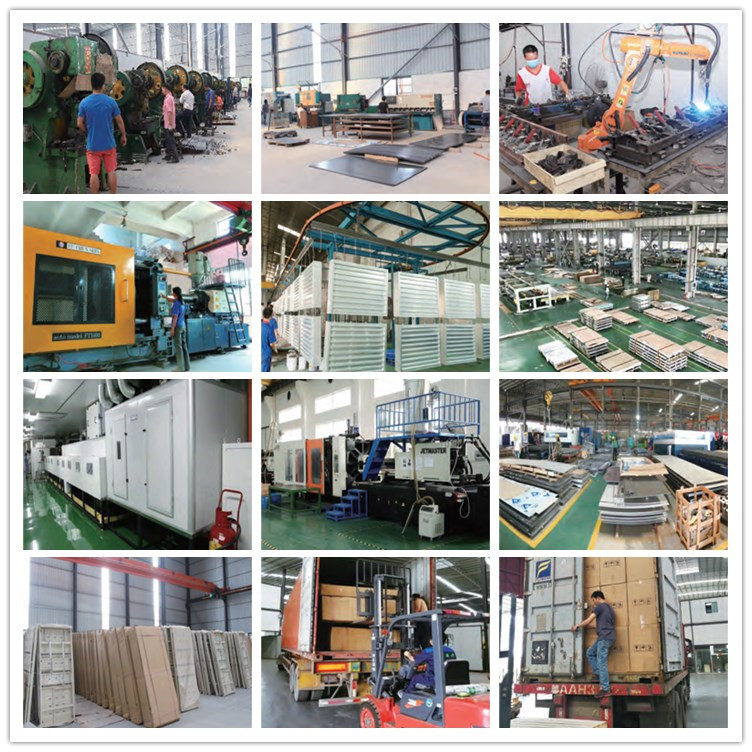

Company Profile
Customer visit & feedback
FAQ
Q: Where is your company located in? Can I have a visit?
A: Our company is located in Guangzhou, China. We are glad to invite you to come to our office and have a face-to-face talking before placing orders.
Q: Do your products have quality assurance?
A: Yes.We have more than 10 years’ experience in making dental unit. Our products have been exported to more than 30 countries.
Q: How about the discount ?
A: To guarantee the good quality, both raw material and manufacture have cost us much. We can offer some discount if the quality is large enough.
Q: How long is warranty for items?
A: 1 year and we can provide accessories replacement if it is damaged during the warranty period.
Q: Could you print LOGO for items?
A: Sure. We can offer printing LOGO as your request.
Q: Do you have CE approved?
A: Yes. Most of our products have CE, TUV and ISO certifications.
